Machine Vision Digital Current Controller 10mA-2A 24V

Brand Name : OPT

Model Number : OPT-DPA2024E

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Product name : Machine Vision Controller Digital Current Controller

Voltage input : 100~240V AC 2.3A　50/60Hz

Auto sensing of light rated current : For 10mA-2A 24V LED light

Manual setting for max. output current : 10mA~2A

Intensity control : 256 levels

Output power : 48W/CH

Dimensions(mm) (L*W*H) : 4CH 91*132*170mm/ 8CH 108*132.4*172.1mm/16CH 140*132.5*172.1mm

Feature : Compact design

Contact Now

Machine Vision Controller Digital Current Controller 10mA-2A 24V 100~240V AC 2.3A for Machine Vision LED Lighting

Model	Channels	Compatible Light
OPT-DPA2024E-4	4	10mA~2A 24V

OPT-DPA2024E-8	8	10mA~2A 24V

OPT-DPA2024E-16	16	10mA~2A 24V

Specifications

Model		Parameter	Description
Voltage input		100~240V AC 2.3A　50/60Hz
Lighting mode		Continuous/strobe	Set via the working mode switch or DEMO software
Auto sensing of light rated current		For 10mA-2A 24V LED light	Enabled via DEMO software
Manual setting for max. output current		10mA~2A	Enabled via DEMO software
Intensity control		256 levels	Set via the adjustment key or DEMO software
Short-circuit protection		Yes	The related channel is shut down and “Er2” displays.
Overcurrent protection		Yes	Enabled when the output current is higher than 110% of the set value: the related channel is shut down and“Er1” displays.
Triggering		Level
Normal trigger		256 intensity levels settable
Normal trigger time unit		1μs/ 10μs 1ms/100ms	Set via DEMO software
Normal trigger pulse width		1μs~30s	Set via the adjustment knob or DEMO software
High intensity trigger		2A output per channel
High intensity trigger pulse width		0.01~5.00ms	Set via the adjustment knob or DEMO software
Programmable trigger		Yes	The intensity, pulse width, and trigger source of each step can be set.
Response time		≤15μs
Response frequency		≤20KHz
Fan control		Via temperature
Output power		48W/CH	4CH/8CH total output: ≤ 48W; 16CH total output: ≤ 180W
Communication		RS232/Ethernet
Standby power consumption	4CH	9.6W	220V input
	8CH	11.8W
	16CH	16.1W
Hi-Pot test		1500VAC 1Min	Leakage current < 10mA
Insulation		500VDC	Insulation resistanc > 20MΩ
Operating temperature		-5℃~50℃
Dimensions(mm) (LWH)	4CH	91132170mm	Refer to the drawings for details
	8CH	108132.4172.1mm
	16CH	140132.5172.1mm
Weight (kg)	4CH	1.1
	8CH	1.2
	16CH	1.6

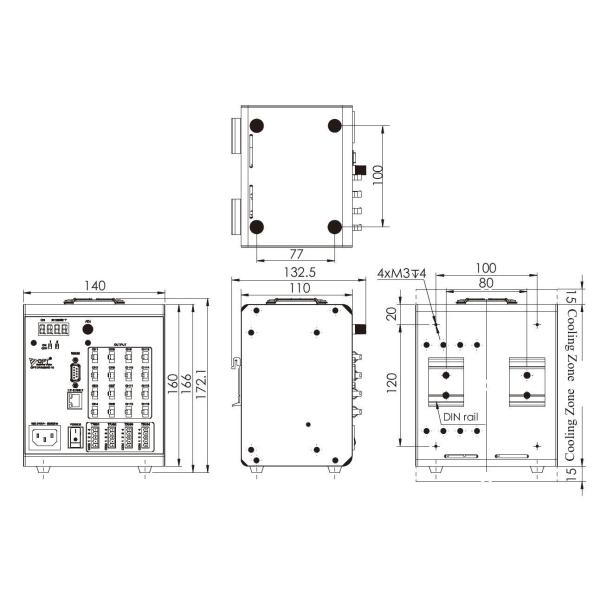

Dimensions (mm)

1.OPT-DPA2024E-4

Machine Vision Digital Current Controller 10mA-2A 24V

2.OPT-DPA2024E-8

3.OPT-DPA2024E-16
